HSN code

84672100

Part no.

0 601 217 1F3

Power input

650 W

No-load speed

0 - 3150 rpm

Impact rate at

0 - 47000 bpm

Drilling dia. in masonry wall

13 mm

Drilling dia. in steel

10 mm

Drilling dia. in wood

20 mm

Weight

1.6 kgs.

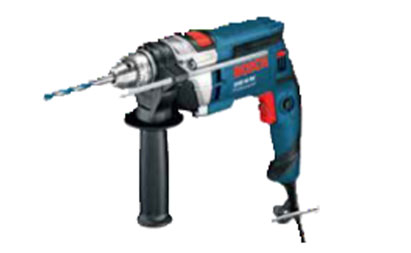

HSN code

84672100

Part no.

0 601 228 1K0

Power input

701 W

No-load speed

0 - 3000 rpm

Impact rate at no-load Speed

0 - 48000 bpm

Drilling dia. in masonry wall

16 mm

Drilling dia. in steel

12 mm

Drilling dia. in wood

30 mm

Chuck capacity

1.5 - 13 mm

Weight

1.9 kgs.

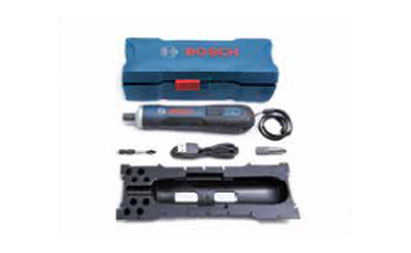

HSN code

84672900

Part no.

0 601 9H2 0F0

Battery voltage

3.6 V

Battery capacity

1.5 Ah

Torque, max. (hard/soft

5 / 2.5 Nm

Torque adjustment range, min. /max.

4 Nm

No-load speed

360 rpm

Charging time

90 mins

Weight incl. battery

0.28 kg

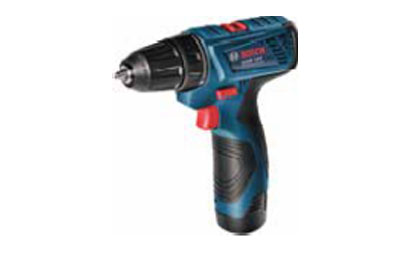

HSN code

84672100

Part no.

0 601 9G8 0F0

Battery voltage

12 V

Battery capacity

2.0 Ah

No-load speed (1st/2nd)

0 - 400 / 0 - 1500 rpm

Torque ( Hard / Soft )

30 / 14 Nm

Max. screw diameter

7 mm

Max. drilling ( wood / steel )

20 / 10 mm

Chuck size

10 mm

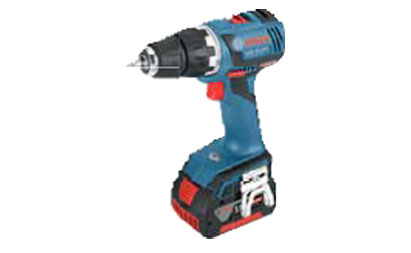

HSN code

84672100

Part no.

0 601 9E8 1K0

Torque, max. (hard/soft

60 / 31 Nm

No-load speed (1st gear/2nd gear)

0 – 600 / 0 – 1900 rpm

Drill spindle thread

1/2"

Battery voltage

18 V

Charging time, approx.

45 mins

Torque settings

20+1

Length x Height

173 x 248 mm

Bit holder

Three-jaw chuck

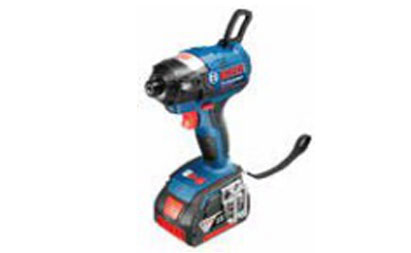

HSN code

84672100

Part no.

0 601 9B9 3F0

Length

139 mm

No-load speed (1st / 2nd gear)

0 - 2800

Weight incl. battery

1.6 kgs.

Torque, max. ( hard )

170 Nm

screwdriving applications)
Rated impact rate

0 - 3200 bpm

Battery voltage

18 V

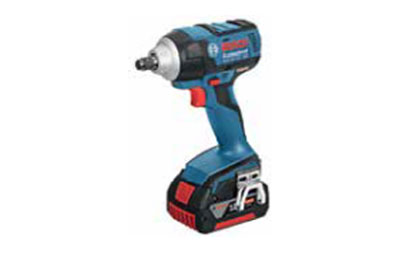

HSN code

84672100

Part no.

0 601 9D8 1F0

No-load speed

0 - 2.400 rpm

Length

163 mm

Height

245 mm

Weight incl. battery

1.85 kgs.

Torque, max. (hard screwdriving applications)

250 Nm

Rated impact rate

0 - 3400 bpm

Battery voltage
Toolholder

18 V
1/2" external square

Screw dia.

M 10 - M 18

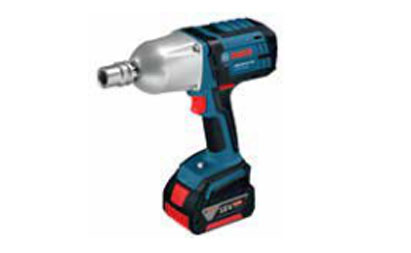

HSN code

84672100

Part no.

0 601 9A1 3F2

Torque max.

650 Nm

No-load speed

0 - 1900 rpm

Rated impact rate

0 - 2100 bpm

Screw diameter

M 12 - M 20

Tool holder

1/2" external square

Weight

3 kgs.

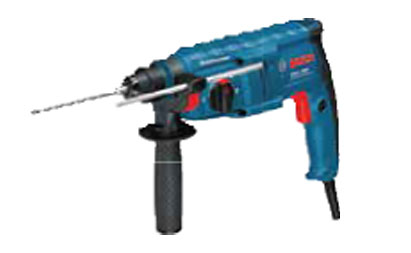

HSN code

84672100

Part no.

0 611 258 3F2

Rated power input

550

Impact energy

2,2 J

Impact rate at rated speed

0 - 3960

Rated speed

0 - 1550

Drilling dia. in concrete

4 - 20

Optimum range in concrete

4 - 12

Max. drilling dia. in steel

13 mm

Max. drilling dia. in wood

30 mm

Weight

2.3 kgs.

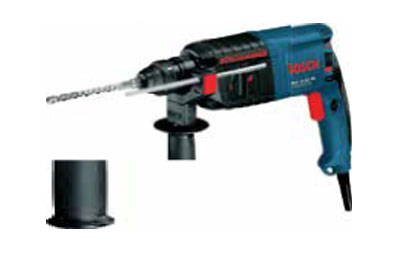

HSN code

84672100

Part no.

0 611 250 755

Drilling dia. in concrete

4 - 22 mm

Drilling dia. in steel

13 mm

Drilling dia. in wood

30 mm

Core bits masonry

68 mm

Power input

620 W

No-load speed
Single impact energy

0 - 1000 rpm
2.2 J

Weight

2.3 kgs.

Max. drilling dia. in wood

30 mm

Weight

2.3 kgs.

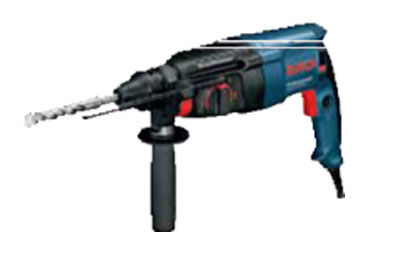

HSN code

84672100

Part no.

0 611 253 755

Drilling dia. in concrete

4 - 26 mm

Drilling dia. in steel

13 mm

Drilling dia. in wood

30 mm

Core bits masonry

68 mm

Power input

800 W

No-load speed

0 - 900 rpm

Single impact energy

0 - 3 J

Weight

2.7 kgs.

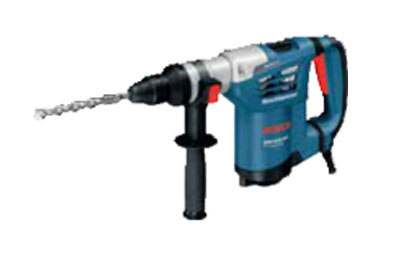

HSN code

84672100

Part no.

0 611 332 1F0

Drilling dia. in concrete

6 - 32 mm

Drilling dia. in steel

13 mm

Drilling dia. in wood

32 mm

Core bits masonry

68 mm

Power input

900 W

No-load speed

0 - 760 rpm

Single impact energy

0 - 5 J

Weight

4.7 kgs.

HSN code

85081100

Part no.

0 601 980 4F5

Input power

800 W

No-load speed

16000 rpm

Flow rate

0-4.5 m3/s

Weight

1.8 kgs.

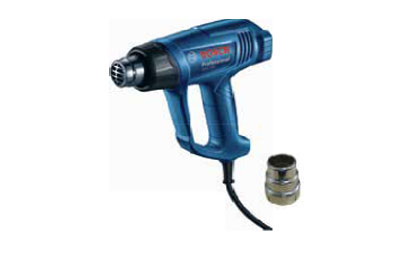

HSN code

84672900

Part no.

0 601 94D 0F0

Power input

1800 W

Max Temperature

60 / 350 / 550O C

Air Flow Rate

350 / 350 / 550 lpm

Over-heat protection

Yes

Weight

0.75 kg

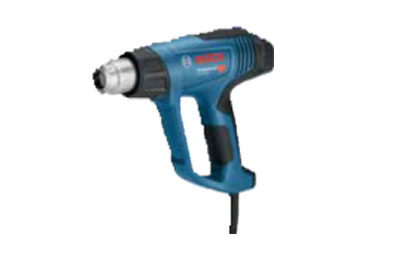

HSN code

84672900

Part no.

0 601 2A6 2K0

Power input

2,000 W

Temperature range

50-630 °C

Adjustable temperature Steps

Yes

Air flow rate

~ 150 / 300 / 500 rpm

Durability

600 h

Weight

0.65 kg

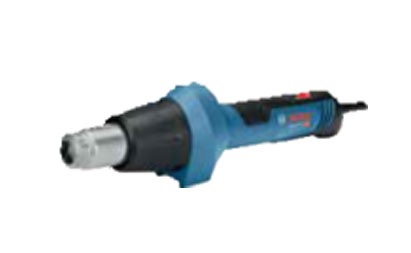

HSN code

84672900

Part no.

0 601 2A6 400

Power input

2,000 W

Temperature max

50-630 °C

Adjustable temperature Steps

Yes

Air flow rate

150 / 500 rpm

Infinitely variable airflow control

No

Durability

500-750 h

Weight

0.55 kg

HSN code

85081100

Part no.

0 601 9E5 0K0

Power input

1100 W

Container (gross/net)

15/8 L

Max. Airflow

33 l/s

Max. Vacuum Pressure

22 kPa

Weight

6 kgs.

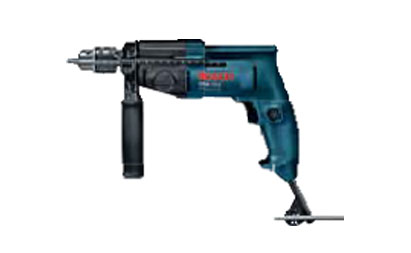

HSN code

84672100

Part no.

0 601 169 055

Power input

550 W

No-load speed

0 - 1000/1900 rpm

Chuck capacity

1 - 13 mm

Drilling dia. in steel

13/8 mm

Drilling dia. in aluminium

20/12 mm

Drilling dia. in wood

32/20 mm

Drill spindle connecting thread

½" - 20 UNF

Weight

1.9 kgs.

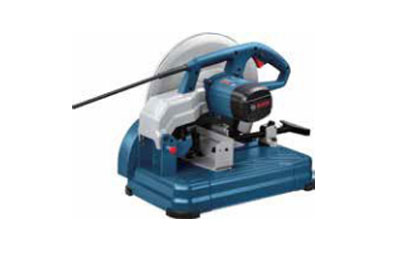

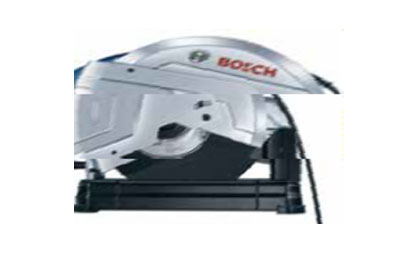

HSN code

84672200

Part no.

0 601 B37 3F0

Input Power

2200 W

No-load Speed

3800 rpm

Disc dia.

355 mm

Cutting Capacity Rectangle

100 x 196 mm

Cutting Capacity Square

119 x 119 mm

Cutting Capacity Round

129 x 129 mm

Cutting Capacity L-Protile

130 x 130 mm

Weight

14 kg

HSN code

84672200

Part no.

0 601 B37 1F0

Input Power

2400 W

Cutting Capacity Rectangle

100 x 196 mm

Cutting Capacity Square

119 x 119 mm

Cutting Capacity L-Protile

130 x 130 mm

No-load Speed

3,800 rpm

Disc dia.

355 mm

Weight

17.5 kgs.

HSN code

84672900

Part no.

0 601 375 05F

Input Power

670 W

No-load Speed

11000 rpm

Grinding Spindle Thread

10 M

Disc dia.

100 mm

Wire Cup Brush, dia.

70 mm

Weight

1.8 kgs

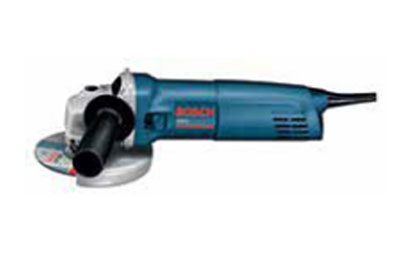

HSN code

84672900

Part no.

0 601 396 0F0

Rated power input

900 W

Disc dia.

100 mm

Grip size

59/54.5 mm

Perimeter

187 mm

Weight

1.8 kgs

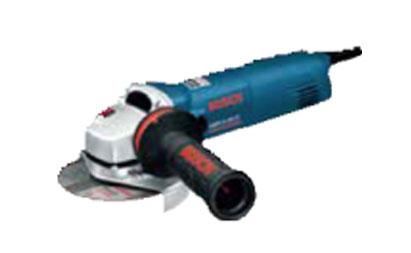

HSN code

84672900

Part no.

0 601 824 2F1

Power input

1,400W

No-load Speed

11000 rpm

Power output

860 W

Grinding spindle thread

M14

Disc dia.

125 mm

Rubber sanding plate, dia

125 mm

Wire cup brush, dia.

70 mm

Weight without cable

2.2 kgs.

HSN code

84672900

Part no.

0 601 224 1F0

Power input

500 W

No-load speed

33000 rpm

Collet chuck dia. max.

8 mm

Spindle collar dia.

41 mm

Weight without cable

1.4 kgs.

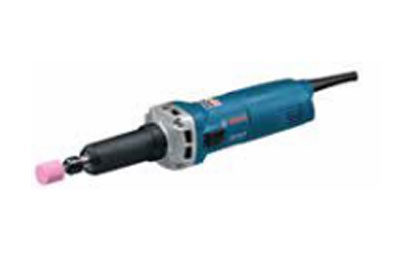

HSN code

84672900

Part no.

0 601 224 0F0

Power input

300 W

No-load speed

0 - 28000 rpm

Collet chuck dia. max.

8 mm

Spindle collar dia.

41 mm

Weight without cable

1.5 kgs.

HSN code

84672900

Part no.

0 601 221 100

Power input

650 W

No-load speed

10000 - 28000 rpm

Toolholder

Up to 8 mm

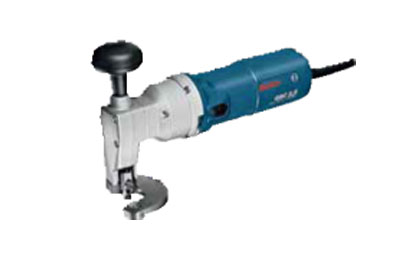

HSN code

84672900

Part no.

0 601 506 103

Max. cutting depth in steel

2.8 mm

Max. cutting depth in aluminium

3.5 mm

Power input

500 W

No-load stroke rate

2400 spm

Weight

2.7 Kgs.

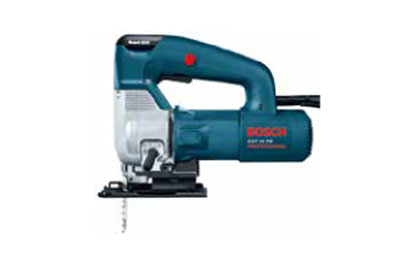

HSN code

84672200

Part no.

0 601 587 65B

Power input

580 W

No-load stroke rate

500 - 3100 spm

Weight without cable

2.4 kgs.

Cutting depth in wood

85 mm

Cutting depth in aluminium

20 mm

Cutting depth in non-alloyed steel

10 mm
